STRAIGHT-LINE EDGING MACHINES FOR STONE

AT THE SERVICE OF THE STONE INDUSTRY

STRAIGHT-LINE EDGING MACHINES FOR STONE

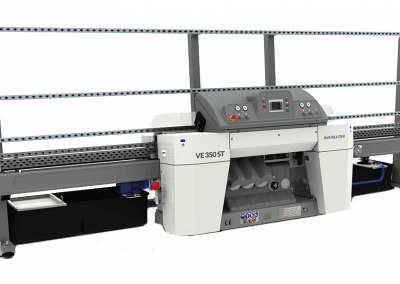

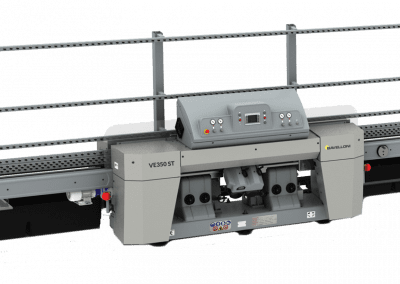

Bavelloni straight-line edgers are available in numerous configurations to meet any grinding requirement, raw and polished, for marble, granite, natural and synthetic stone, ceramic, porcelain stoneware and sintered materials. The advanced structure sizing using the latest Finite Element Method (FEM) systems allows loading and processing of large sheets up to 350 kg per linear meter. The Bavelloni patented conveyor without ball bearings and the spindles separated from the electric motor by a transmission belt guarantee vibration-free operation and precise grinding.

Bavelloni straight-line edging machines are known for their reliability, constant over time. The maintenance free conveyor, the permanently lubricated spindles, the individually replaceable rubber pads of the inlet and outlet chains, the centralized lubrication are common features of all VE models. The touch screen control is easy to use, flexible and functional.

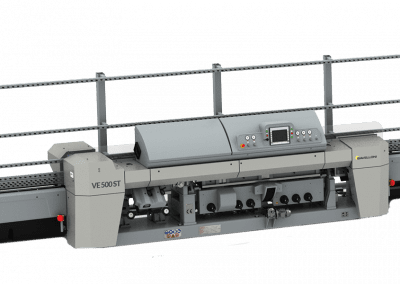

They allow 46° chamfering, standard back arris processing on straight edge with arrises (raw or polished) and also to stop the arris processing to measure, indicating the distance in the control panel (for kitchen tops with peninsula on one side). A wide range of customizable solutions for the automatic loading by robots. The separated inlet arm motorization on the VE 500 V ST Series permits safe loading of a large slab while the machine is working. All models can be equipped with extended racks and arms for edging big slabs in complete safety.
