LAM-SM2 15.30

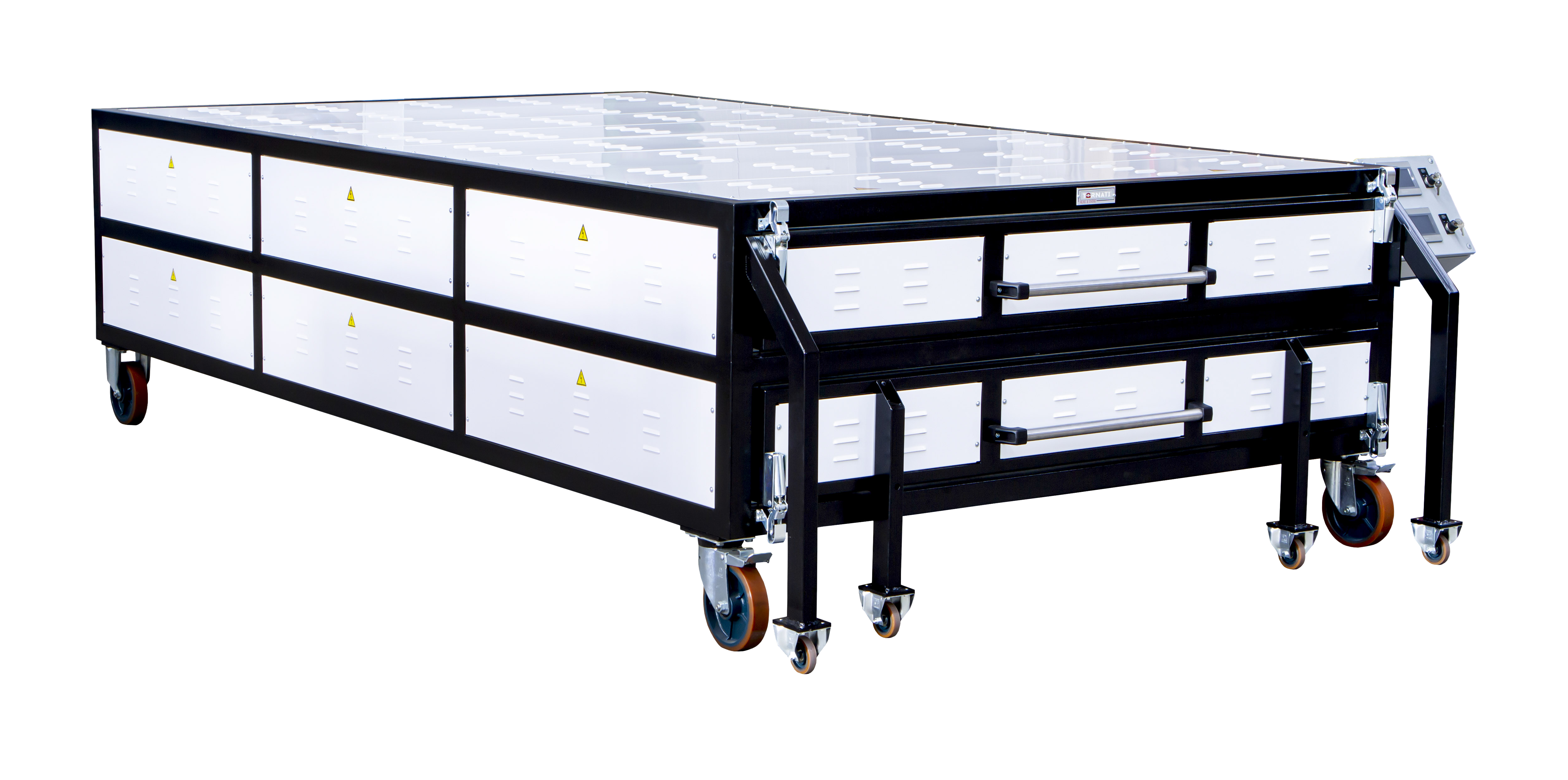

ELECTRIC THERMOSTATIC OVEN FOR VACUUM LAMINATING OF FLAT GLASS
Ask For Information
HOAF HEATBOX

Oven with tubular structure, internal infill paneling in galvanized sheet metal, external paneling in pickled and painted sheet metal, equipped with internal insulation in rigid panels of high density rock wool, with low accumulation and thermal conductivity.

Furnace composed of 2 independent chambers equipped with thermostatic heating system, 2 removable trolleys on wheels, with manual movement.

Oven equipped with

  • 2 independent working tables complete with silicone bag, nets, vacuum valves, pipes and quick couplings with viton seal (n.1 table for each trolley)

  • Armoured type resistors for heating from above

  • Vacuum system complete with 1 pump and accessories

  • n.02 TC 666 handheld programmers for separate management of the two chambers (possibility of memorising up to 56 recipes with 11 portions)

Technical details:

  • – no. 01 silicone bag (mm) 1700 x 3350

  • – no. 02 meshes (mm) 1500 x 3000

  • – no. 02 vacuum valves for silicone bag complete with hose

  • – 45 m3 pump: 1.5 kW

  • – Resistance power: Kw 40.8

  • – Operating temperature: 0-200°
