LAM-SM TRUCK 18.30
ELECTRIC THERMOSTATIC OVEN FOR VACUUM LAMINATING OF FLAT AND CURVED GLASS Ask For Information

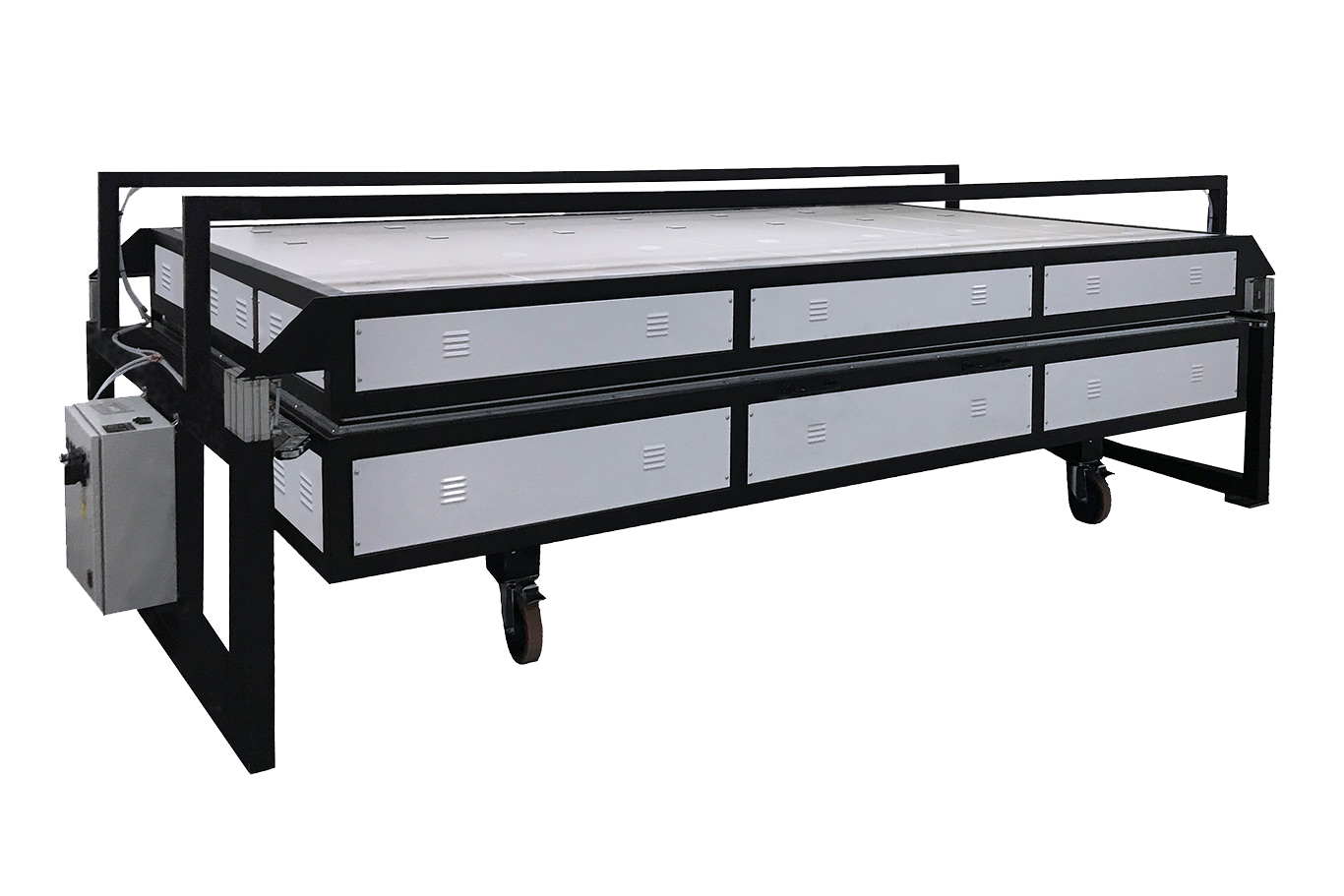

Oven with tubular structure, internal infill paneling in galvanized sheet metal, external paneling in pickled and painted sheet metal, equipped with internal insulation in rigid panels of high density rock wool, with low accumulation and thermal conductivity.
Oven composed of 1 chamber (useful H 200 mm) equipped with thermostatic heating system, 1 manually operated removable trolley on wheels, equipped with resistances on the base.
Oven equipped with
- 2 independent working tables complete with silicone bag, nets, vacuum valves, pipes and quick couplings with viton seal
- resistors placed inside quartz tubes for top heating and additional resistors on the base of the cart .
- vacuum system complete with 1 pump and accessories
- n.01 TC 666 handheld programmer which allows you to memorize 56 recipes with 11 broken portions
Technical details:
- – no. 01 silicone bag (mm) 2000 x 3350
- – no. 02 nets (mm) 1800 x 3000
- – no. 01 vacuum valve for silicone bag complete with tube
- – Max. workable slab: 1800 x 3000 mm approx
- – 45 m3 pump: 1.5 kW
- – Resistance power: Kw 22.5
- – Operating temperature: 0-200°
